The Impala concert hall processes and manages its sound with NST Audio

Together with the electroacoustic system of Eastern Acoustic Works, The technical team of this well-known Córdoba venue now uses a VMX88 equipment from NST Audio for sound management and processing of the entire venue.

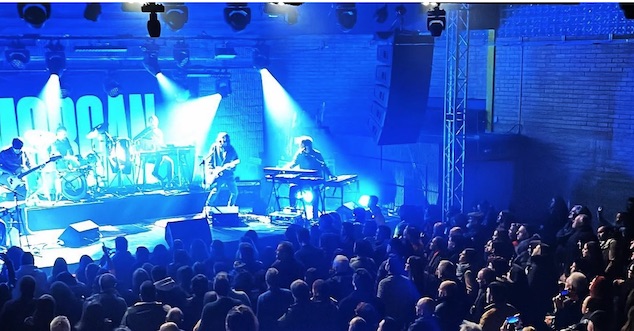

With a surface of 1.400 m2 and a capacity for a thousand people, the Impala hall It is a well-known space in the Andalusian city of Córdoba. One of its key elements is its sound, that the technical team takes care of the maximum detail to respond to its diverse musical programming.

Along with the versatile electroacoustic system of the brand Eastern Acoustic Works (Eaw), The room's technical team has selected the technology of the English manufacturer of audio processors and matrices NST Audio, both brands distributed by central media.

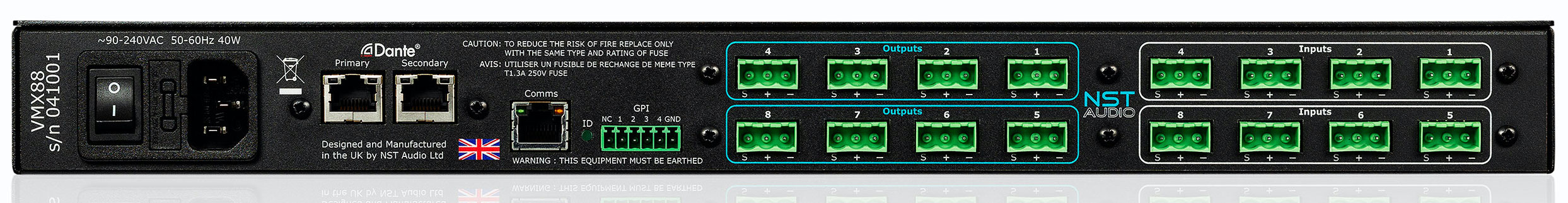

He VMX88 processor of this manufacturer is responsible for the routing of the different audio inputs and outputs of the venue and for part of the processing and limitation of the EAW electroacoustic system.

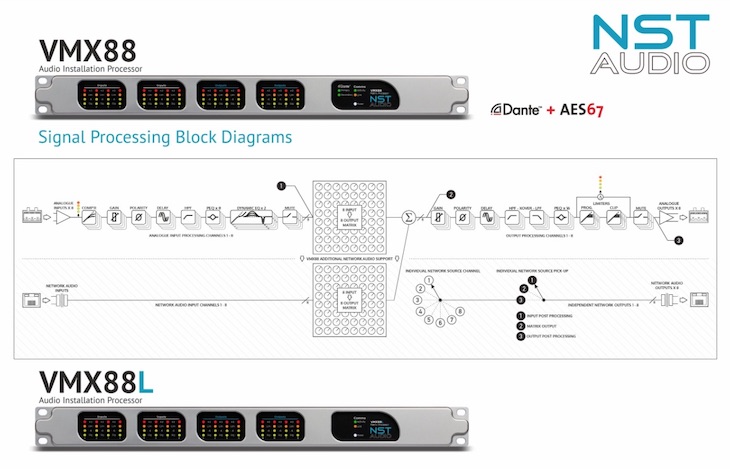

VMX88 offers all the benefits of dynamic filters and algorithms for live sound of NST in a product designed for installation. His eight analog inputs They have compressors and Dynamic EQ per channel, as well as a high pass filter 24dB/Oct, ocho parametric equalizer bands and even 1,3 seconds delay.

A full matrix allows mixing not only analog inputs, but also the eight channels of network audio inputs (Dante + AES67) to any exit. These can be routed to the eight output channels from multiple stages of the chain to provide flexibility in system design.

The eight analog outputs have sixteen bands of parametric EQ, high and low pass filters 48 dB/Oct, until 1,3 seconds delay, as well as the PXL limiters High-performance two-stage for premium speaker protection.

All analog audio connections are made on Phoenix type connectors. The four GPI connections allow configurable actions, such as fire alarm silences and preset calls.

Thanks to this system configuration you can store up to one hundred presets, with options allowing selective recovery combinations of input sections, matrix and output.

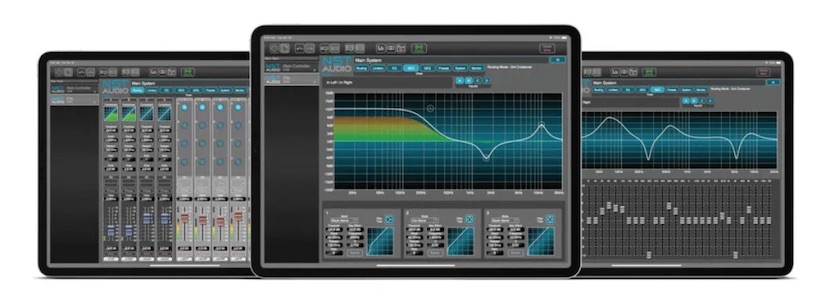

The control software D-net for PC, Mac and iPad offers complete control over Ethernet and WiFi. The VMX88 processor is also compatible with all NST remote controls. Control through third-party systems such as Crestron.
