New Dinion capture series from Bosch, clear license plate images, constant and precise

Bosch Security Systems has added the new Dinion capture series to its portfolio of video surveillance cameras., cameras specially designed to capture constant, high-quality images of vehicle license plates, being ideal for parking control, public areas and for vehicle access control.

Bosch Security Systems has presented the new series of Dinion capture cameras, that captures consistent, high-quality images of vehicle license plates at speeds up to 225 km/hour. Thanks to high-tech lenses, The camera captures clear, readable license plate images from a distance of up to 30 meters and in the darkest environments, for accurate vehicle identification.

Available in two models – Dinion capture 5000 y Dinion capture 7000-, The new cameras have the Night Image Capture System (Night Capture Imaging System), which emits a burst of infrared light while filtering and eliminating visible light. This technology ensures clear license plate images in complete darkness while eliminating the negative effects of headlight glare.. Besides, el “Advanced Ambient Compensation”, o Environmental Compensation, combines high-intensity pulsating infrared illumination, an ultra-fast shutter and automatic switching mode to minimize overexposure to sunlight and glare from vehicle headlights or taillights, to achieve greater precision in automatic license plate recognition.

Up to six capture modes can be selected allowing users to optimize the camera to capture license plates based on region. This feature facilitates precise adaptation to specific license plate recognition algorithms or to configure automatic mode changes according to varying ambient light conditions.. Both models use a short, high-intensity pulse with infrared illumination for a razor-sharp license plate image., while reducing the effects of ambient light. Automatic Mode Switching can be used as a solution to situations where the license plate image is overexposed, as happens when the sun is behind the camera.

Surveillance cameras for vehicle identification

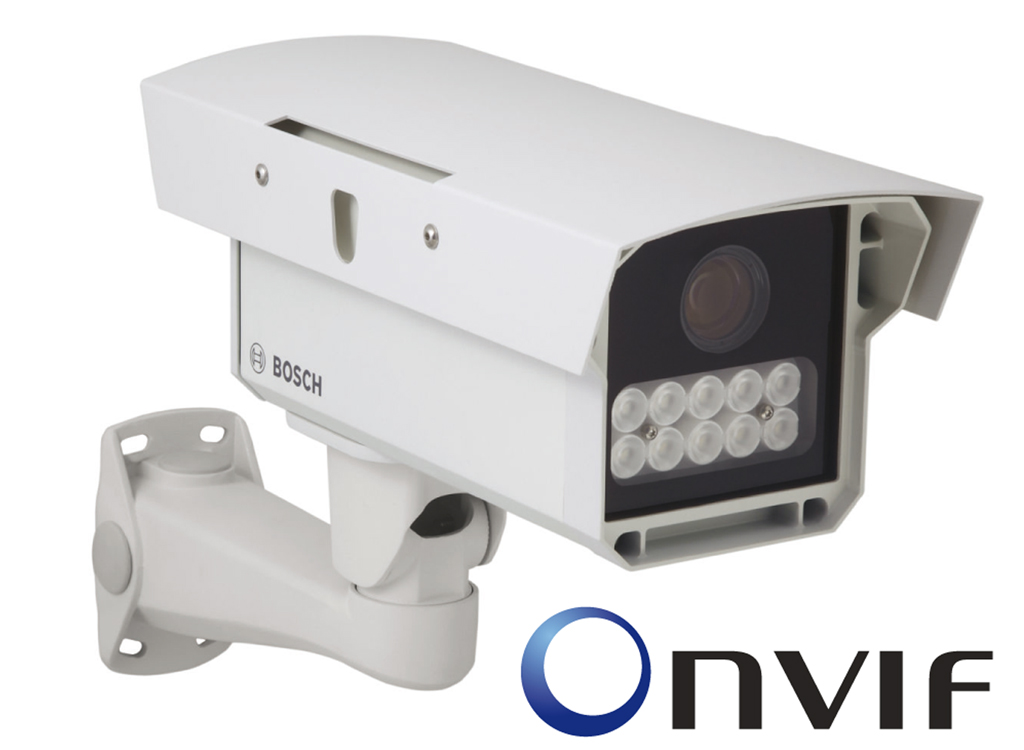

The Dinion capture model 5000 Available as a high-performance analog camera or as a progressive scan CCD IP camera. With an operating range of up to 28 m, the Dinion capture device 5000 Provides high-contrast images of license plates in all types of ambient light conditions, from total darkness to direct sunlight and vehicle headlights. The camera can capture clear images of vehicles traveling at speeds up to 225 km/h (140 mph), which allows obtaining effective captures on highways, highways and in other situations where the vehicle is traveling at high speed.

The camera complies with the ONVIF platform (Open Network Video Interface Forum), so that they can be integrated very easily with other existing surveillance systems from other manufacturers. El DINION capture 5000 Easily integrates with the Bosch Divar digital video recorder 700, Bosch Video Management System y Bosch Video Client. The camera is, besides, Specifically designed to work with third-party ANPR software and its rugged outdoor enclosure is IP 67/NEMA 4X certified.

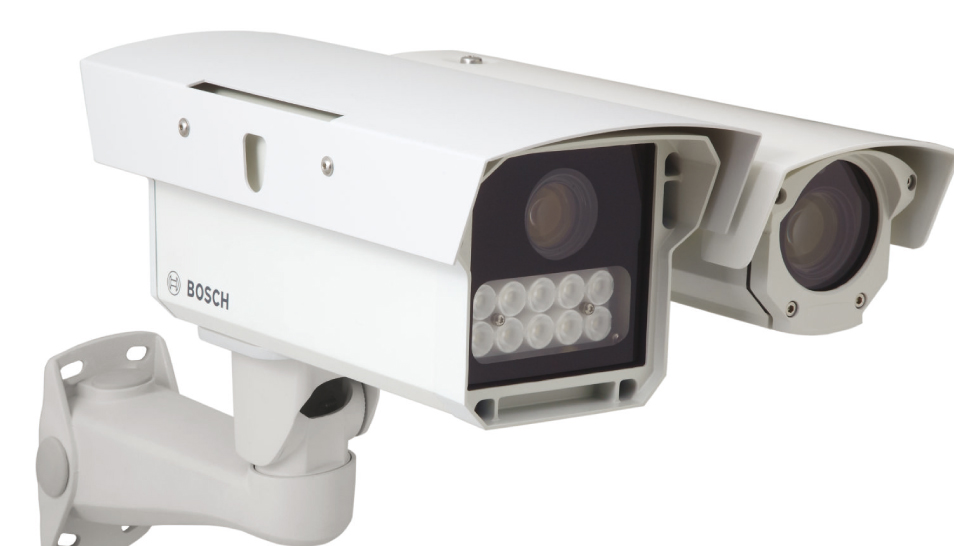

For your part, the Dinion capture camera 7000 uses a wide dynamic range CCD sensor 1/3 inches and incorporates advanced digital signal processing (20 bits), thus obtaining images of the best quality. The attached day/night camera captures wide-view images that enable vehicle make and model identification and provide excellent color reproduction during the day and highly accurate monochrome images at night..

This new camera and the model with attached view camera include image processing. 20 Bosch Dinion camera bits, that processes images very sharply even in low lighting and high contrast conditions. The digital signal 20 High-precision bits are automatically processed to simultaneously display all image details in bright or low-light areas.
