Barcelona's Zoo has, since last July, with a LED display outdoor 4 × 2, 5 meters offering a brightness 6,500 nits.

Led display Dream Zoo Barcelona

Led Dream He obtained the last May the tender to supply and install a large-format LED display in the Zoo of Barcelona. After two months of study and engineering designs, in the month of July was completed the project.

Led display Dream Zoo BarcelonaImplemented by Led Dream model Outdoor series A LED screen has dimensions of 4 metres long by 2.5 metres high, with a total surface area of 10 square meters. It is designed with a resolution pixel pitch of 10 mm and composition of pixel with LED SMD3in1 and a glow that reaches the 6,500 nits, thanks to the use of high-brightness LEDs 3535 Epistar.

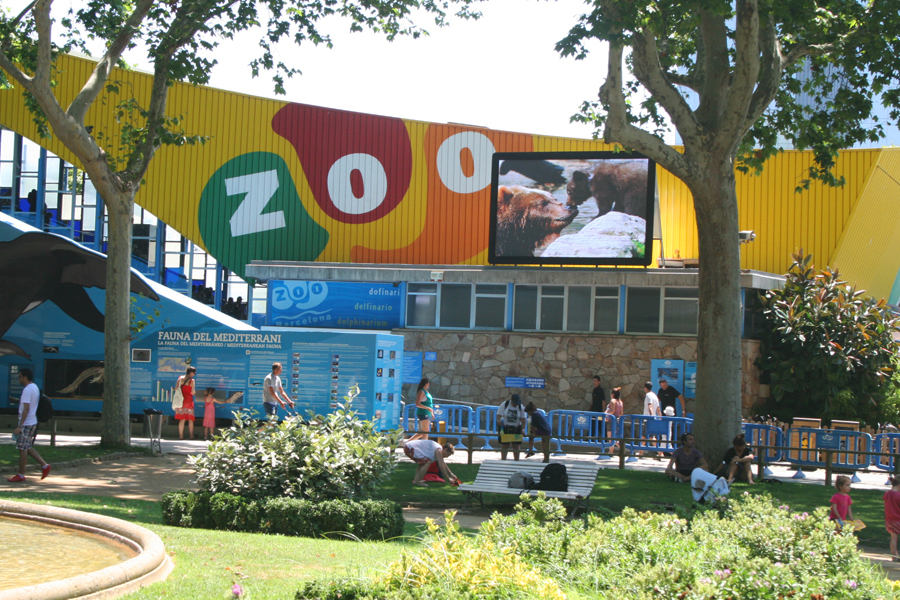

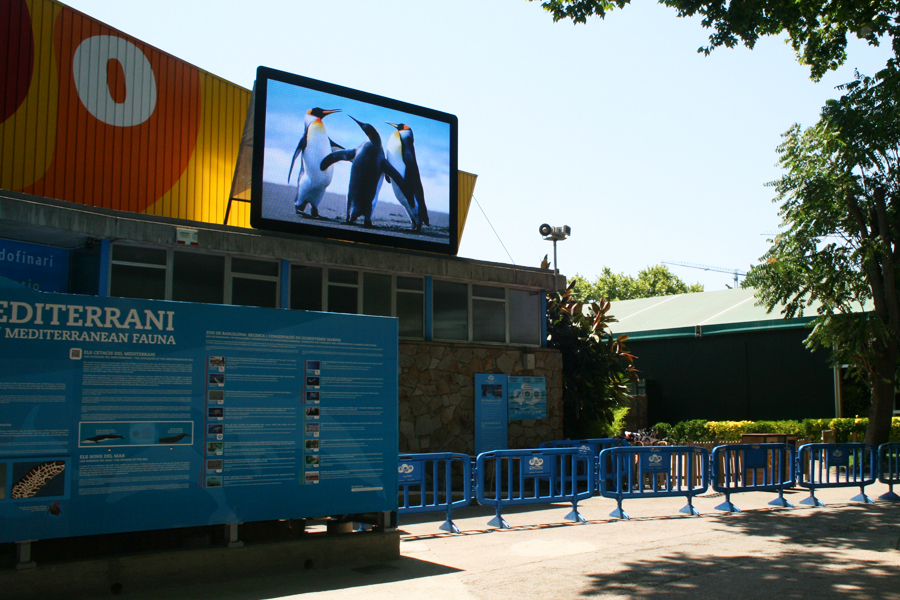

This display has been manufactured in a customized manner and with all its high performance ensures a perfect viewing from all points and angles of view of the square, located in the Parc de la Ciutadella in Barcelona, within the grounds of the Zoo, next to the Dolphinarium.

In addition, incorporates a DBStar control system to achieve a range of 281 trillion colors (48 bits, 16 per color channel) and close to the 4,000 Hz refresh rates.
