Ibase SI-304 digital signage player for video walls

With optimal graphics performance and high energy efficiency, The Ibase SI-304 player is intended for use in video wall configurations and digital signage applications in banks, restaurants and shopping centers.

The SI-304 digital signage player Ibase Technology It incorporates four HDMI outputs and supports 4K resolution (4096 x 2160) for each display channel. An ideal device to transmit dynamic information and promotions in 2-channel video wall systems.×2, digital menu boards in restaurants, as well as on screens installed in banks, airports and shopping centers.

The SI-304 incorporates the second generation of Embedded R-Series processing units with the Radeon HD system 9000 which allows it to offer optimal graphics performance and high energy efficiency.

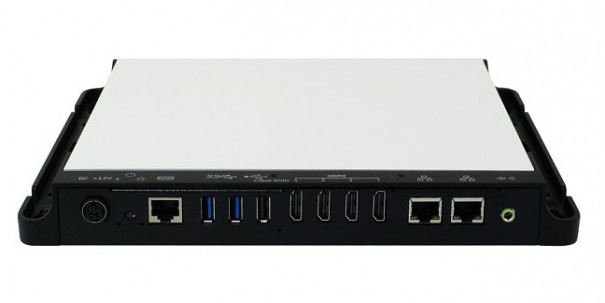

It has a wide variety of input/output connectivity options with two USBs 3.0, un USB 2.0 and three RJ45 for two Gigabit LAN and one RS232. It also has expansion features through two mPCIe and a UIM/SIM slot for WiFi., 3G/LTE y Bluetooth. This compact Ibase player is built with EDID emulation (Extended Display Identification), a feature that allows it to work with a wide variety of display configurations.

The SI-304 is designed with independent ventilation to improve system stability. It is also compatible with Eyefinity technology that allows easy configuration of screens.

It is available with DDR3 SO-DIMM memory 2133 from up to 32 GB, 64 GB SSD and a 150W power adapter.

Features:

• iSmart 3.2 for different functionalities on/off programming, resume and recovery of the operating system.
• Second generation Embedded R-series APU up to 35W.
• GPU Radeon HD 9000.
• 4 HDMI with resolution up to 4K 4096 x 2160 by screen output.
• 4 Audio output and built-in EDID emulation function.
• 2 DDR3-2133 SO-DIMM, dual channel, up to 32GB.
• Dual Mini PCI-E for WiFi, Bluetooth, 3G/LTE or TV tuner options.
• Segregated flow ventilation design.
