VIA Article A600: smart control for IoT and M2M applications

The control system for IoT and M2M applications, Artigo A600 from VIA Technologies is designed without a fan and incorporates the Cortex-A9 SoC processor from 800 MHz. A device for environments that require extensive I/O connections.

VIA Technologies has designed a compact automation control system for enterprise IoT and M2M applications that require low-power equipment incorporating a wide range of input/output capabilities..

With a robust and reliable design, and a wide variety of connectivity options, The Artigo A600 is ideal for managing the connection and control of a wide range of automated equipment and devices across a broad spectrum of business applications including industrial., retail, corporate and hospitality environments.

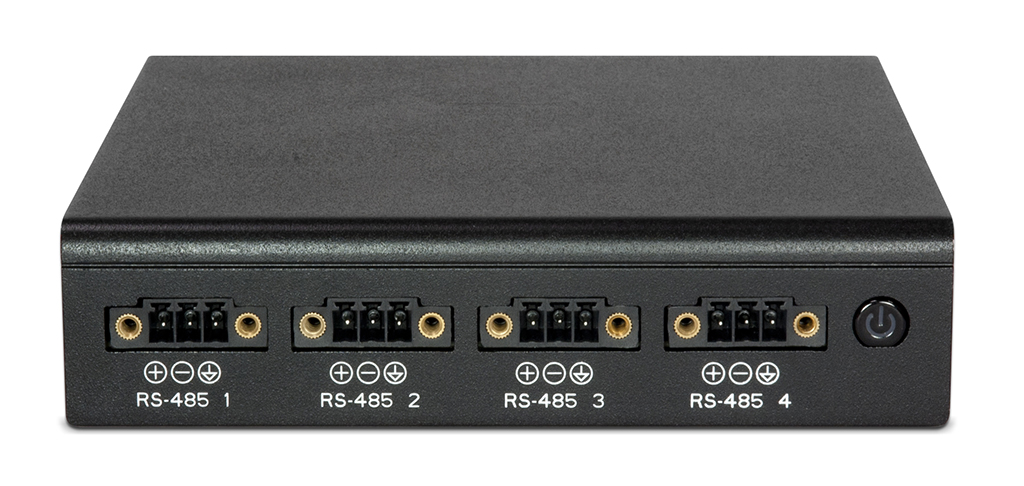

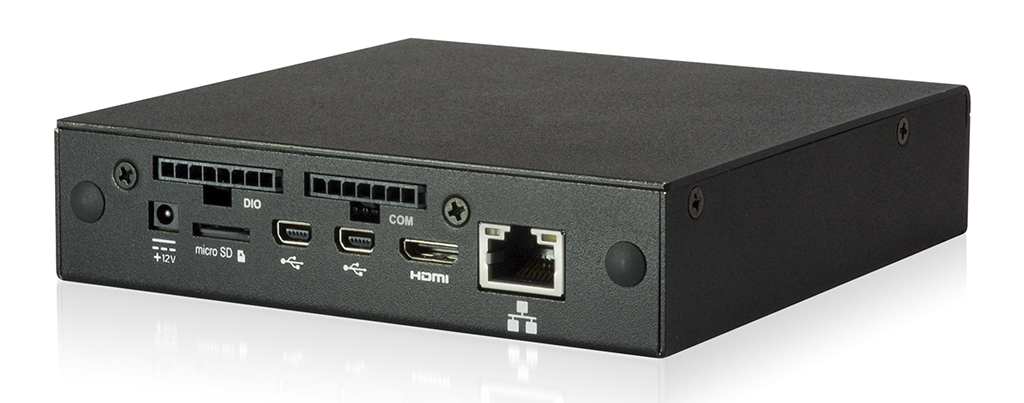

This is the compact Artigo A600 system that does not include a fan and integrates four Phoenix RS-485 COM ports. 3 fully insulated poles 3,75 kV, a COM connector for RS-232 and another DIO of 8 GPIO bits for reliable connections to automated equipment and machinery.

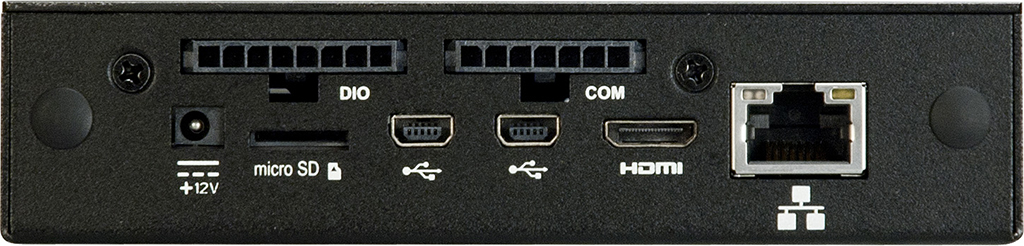

This smart control system also includes two Mini USB ports 2.0, one mini HDMI for HMI display, a 10/100Mbps Ethernet and a Mini PCIe slot. With dimensions of 12.5×12,5×3 cm supports an optional WiFi module.

Equipped with the VIA Cortex-A9 SoC processor 800 MHz, The VIA Artigo A600 system has a Micro SD input, an eMMC Flash memory 4 GB and 1 GB of DDR3 SDRAM memory.

It also has a plate support package (BSP) optimized for Linux that supports all hardware features on the board to speed development and deployment, and facilitate system management. In addition, A full suite of tailored software services are available to reduce time to market and development costs.
