Riedel's new Tango TNG-200 array equips the 7RM mobile unit

The Murcian regional television has acquired the recently presented Tango TNG-200 matrix from Riedel Communications as an intercom system for its new mobile unit., supplied by Crosspoint.

Supplied by Crosspoint, the new intercom matrix, presented on the market just a few months ago by Riedel Communications, has been the option chosen by BGL, project integrator, to equip the new mobile of the Murcian regional channel -7RM- exploited by Secuoya, with which it will cover all types of outdoor productions, including news connections.

The solution delivered by Crosspoint includes some of Riedel's recent developments, such as the Tango TNG-200 intercom matrix itself and the RSP-2318 Smartpanel, además de otros sistemas ya conocidos como los beltpacks Performer C3 para Partyline cableada.

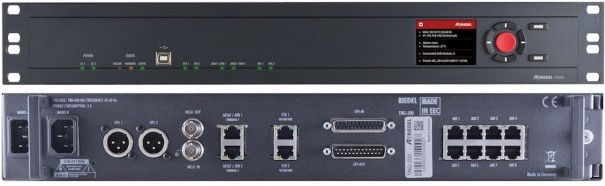

Tango TNG-200 es la primera plataforma completamente en red de Riedel y está basada en los estándares AES67 y AVB. Con su propia aplicación de Intercom dedicada puede convertirse en una solución puntera y flexible para una gran variedad de escenarios de comunicaciones. Cuenta con dos Partylines digitales integradas; dos puertos compatibles AES67 y AVB; dos puertos Ethernet; un slot para opciones y fuentes de alimentación redundantes, todo ello en un elegante diseño de 1,5 RU de altura, pequeña profundidad y bajo ruido.

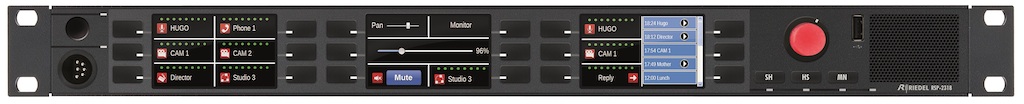

On the other hand, el nuevo Smartpanel RSP-2318 (in the image above) es el primer panel del mundo hasta la fecha diseñado como una potente interfaz de usuario multifuncional, “which will enrich the user experience and change the way we communicate”, they emphasize from the company.

Its multiple capabilities include high-resolution, sunlight-readable multi-touch color displays.. They have eighteen keys in 1RU, Premium quality stereo audio, as well as multilingual character set, with AES67 connectivity, AVB and AES3 over CAT/Coax, plus integrated power supply; two USB ports; two Ethernet connectors; GPIO, IN/OUT audio, removable gooseneck microphone and HDMI output.

The new UM of 7RM, operational for a few weeks, It is a kind of hybrid unit since it responds to the requirements of a DSNG and to cover the broadcast and realization of other types of events. (sports, magazine, …), being equipped with six cameras.
