This 4K60 presentation switcher that incorporates six local inputs, two outputs and two card slots for Networked AV is an ideal device for learning environments or campus continuously growing.

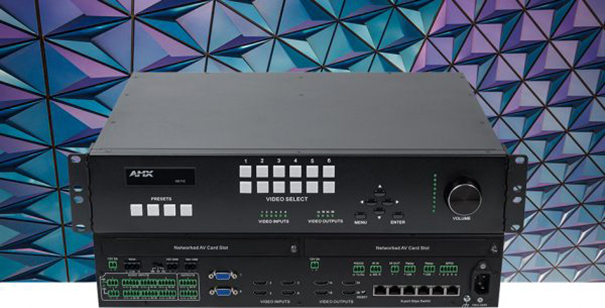

AMX N7142

The all-in-one AMX N7142 is a climber matrix presenter 4K60 4: 4: 4 incorporating six local inputs, two outputs and two card slots Networked AV (AV over IP) making it an ideal device for active learning environments or campus continuous growth .

This presentation switcher AMX, which distributes brand AVIT Vision, dispone de cuatro entradas HDMI 4K60 y dos entradas VGA, que pueden ser conmutadas independientemente a dos salidas HDMI (una escalada y otra sin escalar). Cada una de las dos salidas tiene un puerto HDMI en espejo para que la salida pueda enviarse a una tarjeta codificadora, una segunda pantalla o a otro equipo de distribución de vídeo.

Con el AMX N7142, las universidades pueden llevar video UHD de alta calidad a los displays presentes en las aulas, a la vez que permite que esas señales lleguen a los estudiantes en cualquier lugar en el que se encuentren en el campus, casi al instante. Todo esto es posible gracias a las dos ranuras Networked AV disponibles y al switch Gigabit Ethernet integrado en la unidad, que permiten a su vez que esa transmisión se lleve a cabo a través de la típica red de datos presente en los campus.

This solution also has an extensive audio support with stereo 60W amplifier and DSP built. In addition to the audio of the HDMI inputs, the N7142 has six independent stereo inputs and two balanced microphone inputs with phantom power.

AMX N7142 to integrate classroom access to a web page to configure the system is necessary. It also incorporates a Panel Builder to create user interfaces for mobile devices from which to control the switcher from anywhere in the room.

Two models are available: NMX-PRS-N7142, which is the presentation switcher base, with two slots in which to install Networked AV encoder cards and decoder as required to install; and PRS-NMX-N7142-23, identical switcher presentation, but equipped with a card.


  • 4K60 video switching 4: 4: 4: Changes and displays the 4K video sources without compromising video quality.
  • HDMI 2.0 and HDCP 2.2 which makes it compatible with all sources and latest 4K screens support.
  • Networked AV slots integrated Gigabit Ethernet switch: Distributes video in large enclosures by Networked AV technology, which grooves are designed to support coding and decoding cards existing AMX.
  • Audio amplifier modes 4/8 Ω, 70 and 100 V.
  • Front panel control.
