The María Zambrano university campus in Segovia relies on DAS Audio technology

A sound system composed of Aero series equipment has been installed in the auditorium of the María Zambrano university campus in Segovia., LX, Artec-500 and Action-500 THE audio.

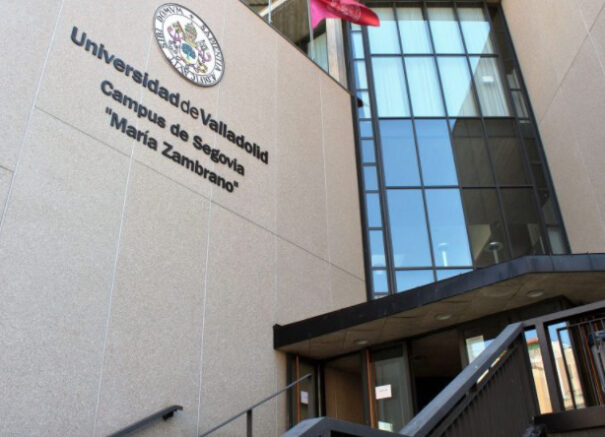

The cuniversity ampus María Zambrano de Segovia, belonging to the University of Valladolid, has expanded its facilities with the inauguration of a new building, which features an auditorium/assembly hall with capacity for about 400 people sitting.

This multifunction space required a multipurpose sound solution, so the company in charge of the installation, EMCO from Valladolid, contacted THE audio to carry out the study and sound proposal. For this he had the collaboration of Álvaro Plumed, Company Sound Project Engineer.

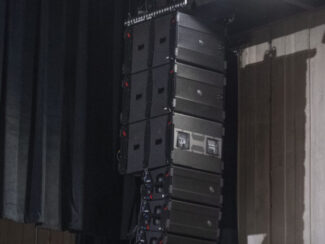

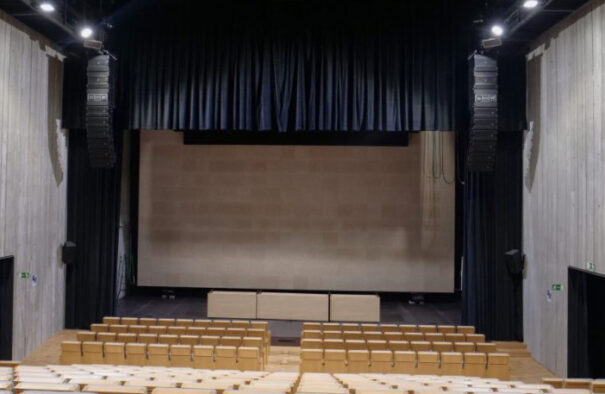

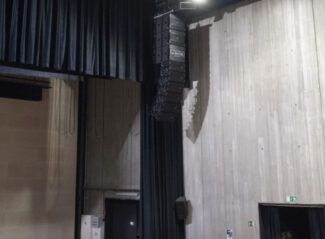

The main system is made up of two line arrays located at each end of the stage in L-R configuration. Each of these line arrays is composed of 3 subgraves LX-118A y 6 systems Aero 20A suspended below the aforementioned subwoofers.

The possibility of placing each of the elements at the correct angle, allows to offer very uniform coverage, as well as optimal speech intelligibility. All main equipment has the audio control and management system DASnet.

To cover the area immediately adjacent to the stage, two systems have been placed Artec-510A, while to provide the necessary coverage to the participants or actors on the stage, they have 2 monitors Action-M512A. The system is completed with a DAS digital signal processor DSP-2060A. All elements of the system are self-powered.

After system start-up, both the EMCO technicians responsible for the installation, like the managers of the University Campus of Segovia, They have been very satisfied with the result obtained, highlighting the cleanliness of the sound and its uniformity throughout the audience area.

“The cardioid configuration of low frequency systems, was carried out by reversing the last system to guide the maximum cancellation on the stage and at the same time, adapt the axis of maximum radiation of the system to the slope of the audience area”, comments Álvaro Plumed, DAS Audio Engineer.
