Base SI-654-N: Fanless 8K player for digital signage

Designed with the processor Intel Core i7-1185G7E, the 8K digital signage player base from SI-654-N is ideal for busy places where there is a constant demand for information.

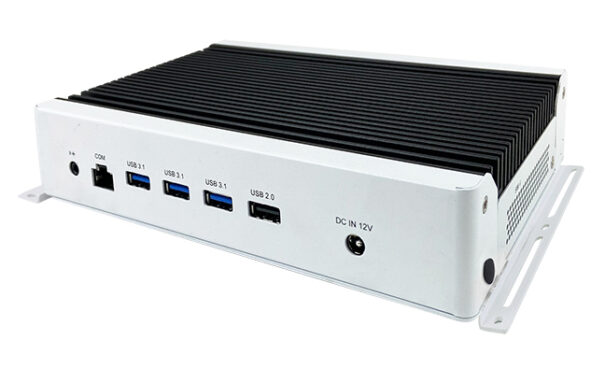

Base SI-654-N It is the latest digital signage player that the company has presented. This is an 8K device designed without a fan in which the processor has been included Intel Core 11ª generation four HDMI outputs.

Offered with an Intel Core i7-1185G7E processor (cache 12 M, until 4,40 GHz) that integrates the high-performance Iris Xe GPU, the graphics of 12 Intel generation with 96EU.

With a size of 200x139x41 mm, The SI-654-N is a compact system that can be installed in space-constrained environments. Hosts four HDMI connections 2.0 to offer an 8K screen or 4 pantallas 4K, with 8K resolution and ensuring a truly immersive viewing experience for the audience.

Primarily designed for digital signage in busy locations where there is a constant demand for information, The SI-654-N has HDMI-CEC control, screen status monitoring, Flexible video wall configurations and hardware EDID emulation that prevents distortion or black screen.

“New industrial-grade SI-654-N suits airport video wall solutions, shopping centers and other premises that require reliable operation. 24 hours of the day, los 7 days of the week”, explained Archer Dog, Director of Solutions Product Planning at Ibase. “With our advanced iSmart and Observer technologies, This player is equipped with low temperature boot protection, power resume control, On/off programming and hardware monitoring to enable continuous and stable operation”.

For high-performance signage deployment, The SI-654 model with fan is also available.
Both players support TPM 2.0 for optimal cybersecurity and vPro for easy remote monitoring and management.

Features:

• iSmart intelligent energy saving technology: Allows on/off scheduling and power resume functions.

• 11th Gen Intel Core U-series processor (Tiger Lake).
• Four HDMI 2.0 with independent audio output.
• Built-in hardware EDID emulation function.
• Screen monitoring and HDMI-CEC functions.
• Dos DDR4 DDR4-3200 SO-DIMM, dual channel, max. 64 GB.
• Tecla B M.2 (3042) para 4G LTE.
• M.2 dongle (2230) for WiFi or capture card option, TPM 2.0, vPro and watchdog timer.
• Compact design, Rugged, industrial-grade fanless.
