Elation redefines creative Led lighting with the new Six+ Bar series

Ideal for a wide variety of productions and installations, Elation Six+ Bar is presented as an IP65 device suitable for indoors or outdoors, and its marine grade coating ensures protection against the harshest environments.

Elation has created Six+ Bar as an innovative line of creative LED batten solutions IP65 rated, with a versatile design for greater artistic expression. An update that offers more output, a broader color spectrum and higher light quality.

Equipped with Led RGB+Lime+Amber+UV of 20 W and a CRI of 93, Six+ Bar offers a wide variety of colors, which guarantees a homogeneous light wash with high quality color reproduction. Its optical system guarantees uniform light distribution, and patented RGBLA+UV engine delivers high-fidelity whites and rich primaries without color fringing. The extra large lenses of 50 mm make it ideal for direct vision applications and the individual cell control opens up a large number of design possibilities.

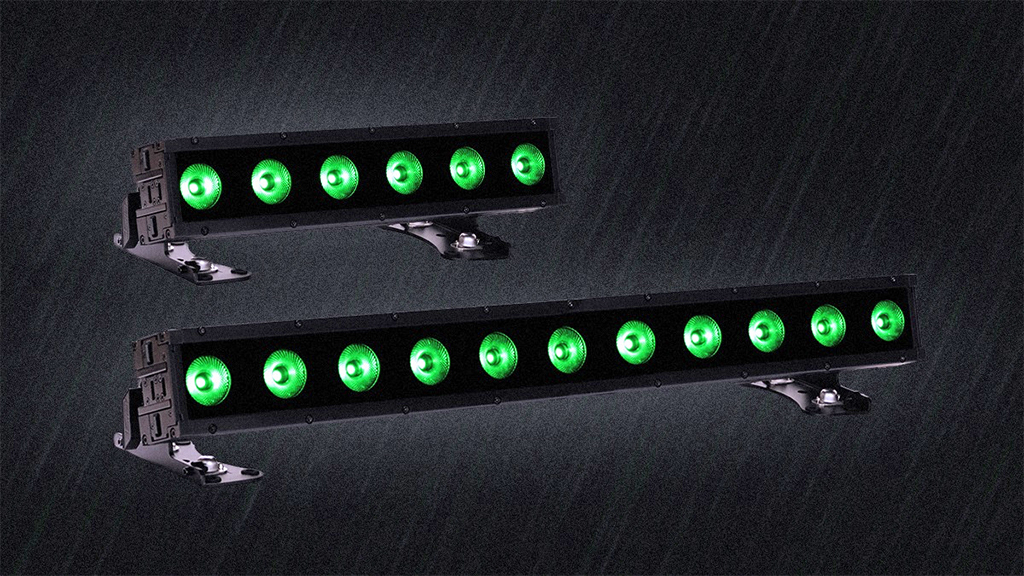

Ideal for a wide variety of productions and easily integrated into installation applications, Six+ Bar L serves as a very versatile wash light, vertical and wall/cycle lighting, accent light or direct view pixel strip. One meter long, houses 12 Led RGBLA+UV and has a power of more than 7.000 lumens, while the Six+ Bar S, half a meter long, houses 6 Led RGBLA+UV and radiates more than 4.000 lumens.

With variable color temperature adjustment (2400K – 8500K), CMY emulation and a virtual gel library, Designers have immediate access to a diverse range of LED colors, including beautifully blended whites. A time-saving Six Bar emulation mode ensures color matching and DMX control with existing Six Bar fixtures.

Integrated accessory slot accepts included antifreeze filter, with optional ND filters and other optics available. The device also ships with a protector antideslumbrante included for wall washing applications.

The Six+ Bar slats house an electronic dimmer and a strobe light and are capable of smoothly dimming 0 a 100 % with excellent stability throughout the range. Also included is a selection of curves and dimming modes. 16 bits.

Designed to offer maximum flexibility, The Six+ Bar's innovative housing allows for end-to-end interconnection and includes an integrated L-rail on three sides for flexible mounting and positioning. Trunnions designed to attach to the L-rail can be attached at multiple points to optimize positioning around objects or obstacles.

Encased in a durable casing with IP65 rating, the device is suitable for any environment, interior o exterior, and marine grade coating ensures protection against the harshest environments, even the salt air of the coast. Fanless convection cooling ensures quiet operation, making it ideal also for noise sensitive environments.

Fully controllable via DMX/RDM protocols, Art-Net, sACN and KlingNet, The SIX+ BAR also features patented Aria x2 wireless device management for simplified system setup and maintenance.
