Lynx Pro Audio develops new Luka digital signal processors

Composed of three models, each equipped with one AES and two or four analog inputs, Luka series Lynx Pro Audio is a complete solution to address any digital audio processing and routing application.

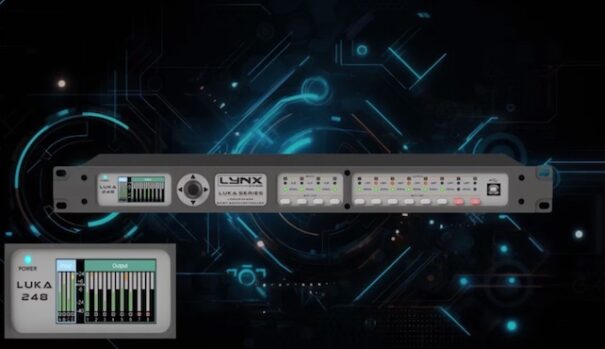

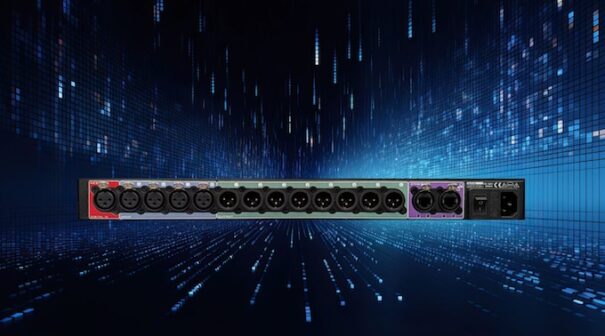

The new Luka series of digital signal processors, designed, assembled and manufactured by Lynx Pro Audio and composed of the models Luka 224, 226 y 248, offers a flexible configuration thanks to a AES3 input and two or four analogue, with up to eight exits to adapt to different applications.

This solution has been designed to respond to any application digital audio processing and routing, with a matrix and distribution of signals between various sources and destinations to deliver optimal sound quality.

Luka digital signal processors allow manage complex audio setups, making it easy to route signals to different speakers, monitors or recording devices with greater control and flexibility.

The Luka series also has entries of backup so that the audio technician can have more options and prioritize one at a given time, thus guaranteeing the continuity of an event.

Added to this is his double dynamic, with a compressor/limiter that adjusts the sound level of the transducer, which minimizes distortion levels and provides protection to all system components.

Besides, he peak limiter controls maximum speaker movement, protecting it from damage by reducing distortion caused by over-excursion. Los AD and DA converters of 32 bits y 768 kHz offer a wide dynamic range of 121 dB at the entrance and 120 dB at output, with a sampling rate up to 192 kHz for AES3.

The series operates with a voltage range of 85 up to 240V and a frequency of 40 a 400 Hz, with an IEC connector and an efficient power consumption of 30 W.

Audio processing covers frequencies of 10 Hz a 24 KHz, with an internal resolution of 64 bits a 48 KHz. Equalization also includes filtros High-Pass, Parametric y FIR personalized.
