Barco OverView: LCD panels for videowall configuration with ultra -estate bevel and automatic calibration

The Boat Visualization Solutions Specialist has developed a new range of LCD screens for Videowall configuration with an ultra -straight bezel (3,5 mm.) and redundant power supplies, with automatic brightness and color calibration through the Sensex technology of this firm, especially indicated to offer maximum performance in control rooms.

The new range of LCD video screens for videowall configuration Barco Provides an ultra -season, of 3,5 mm. (0,14”) Among the displays to offer higher image quality without cuts, With high performance panels and brightness level (700 CD / M²) To offer the best image quality.

Among other innovations, These new Full HD systems have redundant food sources, with automatic brightness and color calibration to improve the visualization experience in a videowall, While the total property cost is reduced (TCO).

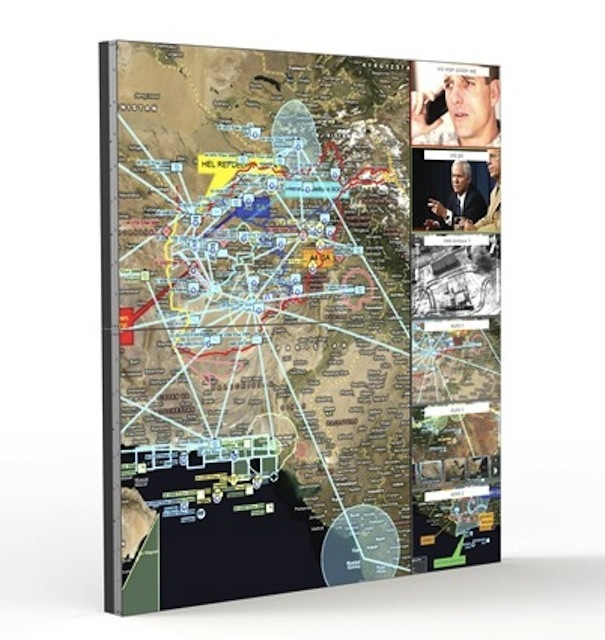

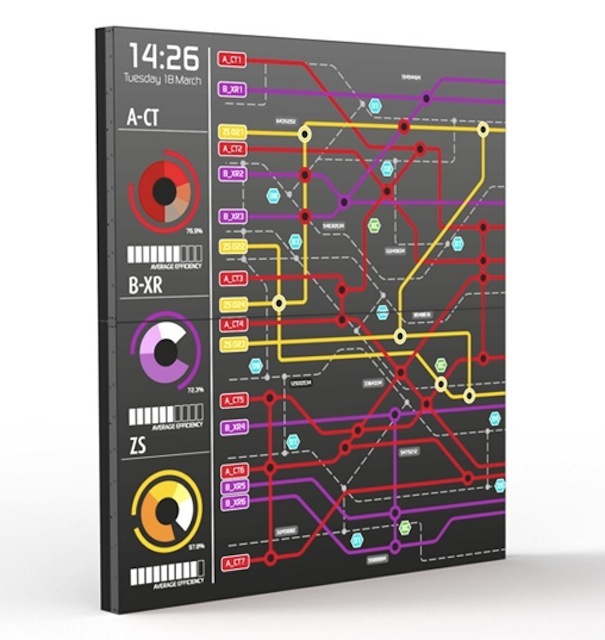

The OVD-5521 boat model integrates a high performance 55 ”LCD panel and 700 CD/m² of brightness for mosaic videowall configurations with perfect visibility in any lighting condition in a control room, Corporate space, red de digital signage, etc.

For its part, el panel LCD OVD-4621, With a size of 46 ", offers a light outlet of 700 CD / M², With a narrow frame of 5,7 mm. (0,22”) Between screens and a large viewing angle, especially suitable in terms of visual performance in advanced control rooms.

Climbing functions, Image and streaming cuts

The Overview KVD-5521 screen integrates a 55 ”high performance LCD panel and intermediate brightness level (500 CD / M²) In an optimized cost solution for murient video applications, With a frame of just 3,5 mm. (0,14”). This panel incorporates processors to perform climbing functions, Red cut and streaming, so it is possible to do without external players or controllers. Just connect the screens to the network, Set the settings and let the content reproduce. This functionality is extremely useful in basic control rooms, in which all the operation (For example, In the case of surveillance cameras) can be done without a player or controller.

These LCD panels for videowall configuration require a minimum space, They are easy to install and offer excellent image quality at an affordable price, Thanks to the incorporation of automatic calibration technology and Sensex shine, developed by this manufacturer based in Belgium.

This technology uses incorporated sensors within each panel to accurately detect the shine and color performance of each screen in real time. Using unique boat algorithms, Sensex automatically calibrates each LCD panel at the desired levels of brightness and color to achieve a uniform video mural screen. The calibration process can be executed without interrupting the image shown in the Videowall, With a very uniform and stable result for applications 24×7.

The screens have a thermal management system controlled by temperature sensor and use ultrasilencious fans to ensure optimal refrigeration at all times, So the duration of backhoper is maximized, which results in a minimum property cost.

As option, It is possible to choose an external power supply, reducing more maintenance costs. Unlike other market models, The performance is not affected by the longest cables, so that the external power supply can even be placed 100 meters of the videoWall without loss of quality or brightness of the image, so that it can be located in another room to minimize both screen and noise heating.
