The new Cabinet Control HST of JBL Professional incorporates technology Hemispherical Soundfield Technology to offer a wide horizontal coverage both in interior and exterior installations.

JBL Control-HST Earpro

With a horizontal coverage very wide, next to the 180 °, the speaker Control HST's JBL Professionall, whose products marketed Earpro in the Iberian market, used for this wall on which it is mounted, whether for interior applications or in outside, which can be combined with systems of notices.

"Control HST not only solves inherent reflections arising from mounting on wall, they, in fact, makes the wall part of the operation of the speaker - explains Rick Kamlet, senior manager commercial sound JBL. A single speaker Control HST can offer wall-to-wall coverage, which can reduce the number of enclosures needed to cover a space, thus reducing the total sound system costs".

This Cabinet is an ideal solution for shops and shopping malls, restaurants, educational facilities, entertainment complexes, hotels and musical applications, which can be combined with the system of notices. It is resistant to water, according to the standard IP34, for use on exterior.

JBL Control-HST Earpro

System incorporates the HST (Hemispherical Soundfield Technology) technology from JBL, of recent development, to offers a wide coverage and eliminate the primary reflection on wall, which normally cause an inconsistent sound when the speakers are they are mounted on wall. This is due, to be Speaker of the own speaker some distance from the wall, low frequencies and stockings tend naturally to wrap the speaker, causing reflections on the wall that are mixed with the original sound.

Reflections will be in phase with the signal coming from the transducers and others will be out phase, which produces reinforcements, cancellations, peaks and valleys in the frequency response of the speaker, something that is avoided with this technology.

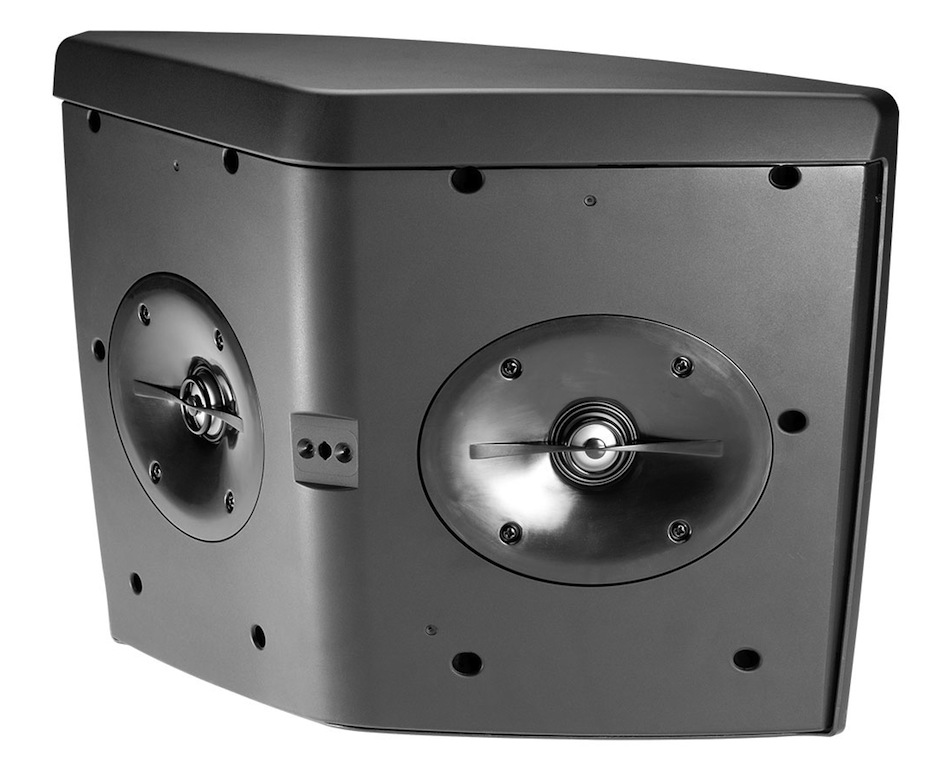

Using a woofer facing the wall, two tweeters separated horizontally, a fitting that separates the speaker from the wall to the required distance and accommodation which offers adequate cargo and dispersion of sound, Control HST reduces substantially these inconsistencies to deliver a frequency response flatter and a character sound more balanced throughout the room.

JBL Control-HST Earpro

El woofer de 5 1/4″ está fabricado con un material denominado CMMD (Ceramic Metal Matrix Diaphragm), que une una superficie exterior de material cerámico a un núcleo de aluminio, de manera que Control HST cuenta con un cono ligero, rígido y duradero que ofrece una calidad y detalle óptimos. Además, el material CMMD ofrece resistencia a la humedad.

Por su parte, los tweeters CMMD duales de 1″ de la caja acústica cuentan con imán de neodimio, exterior de poliuretano y refrigeración de ferrofluído para ofrecer altos niveles de salida, con baja distorsión. Control HST es capaz de manejar hasta 100 watios y está equipado con un conector phoenix de bloqueo (desmontable) de 4 pines que incluye terminales de salida directa loop-through para la conexión en paralelo de otra caja acústica.

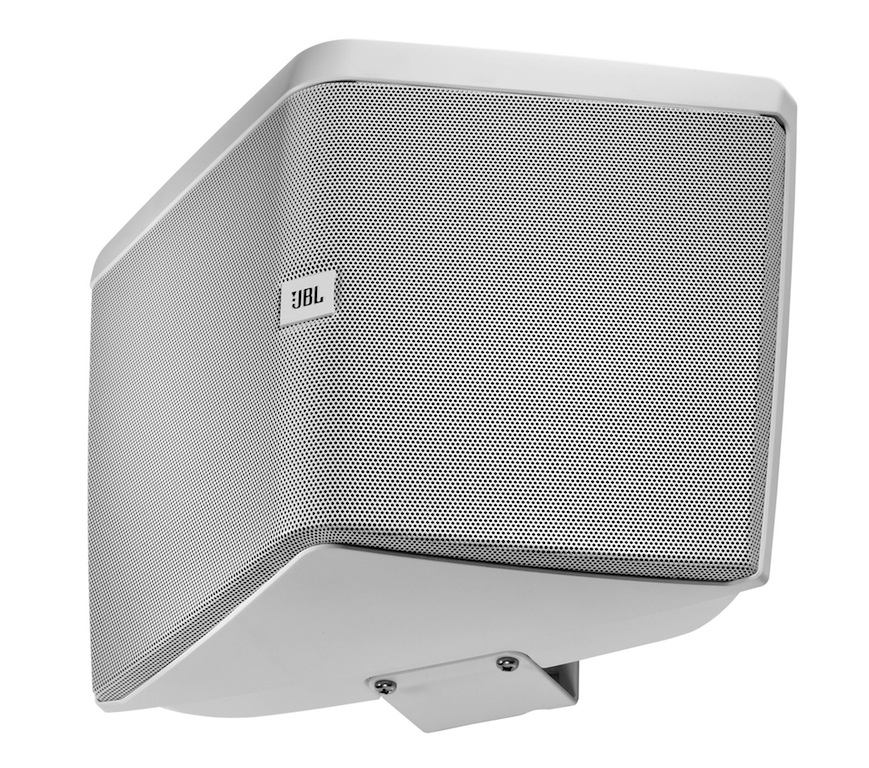

Disponible en blanco o negro (puede también pintarse), esta caja acústica cuenta con un transformador de 60W, con varias posiciones para sistemas de audio distribuido, mediante líneas de alta impedancia de 70V ó 100V.

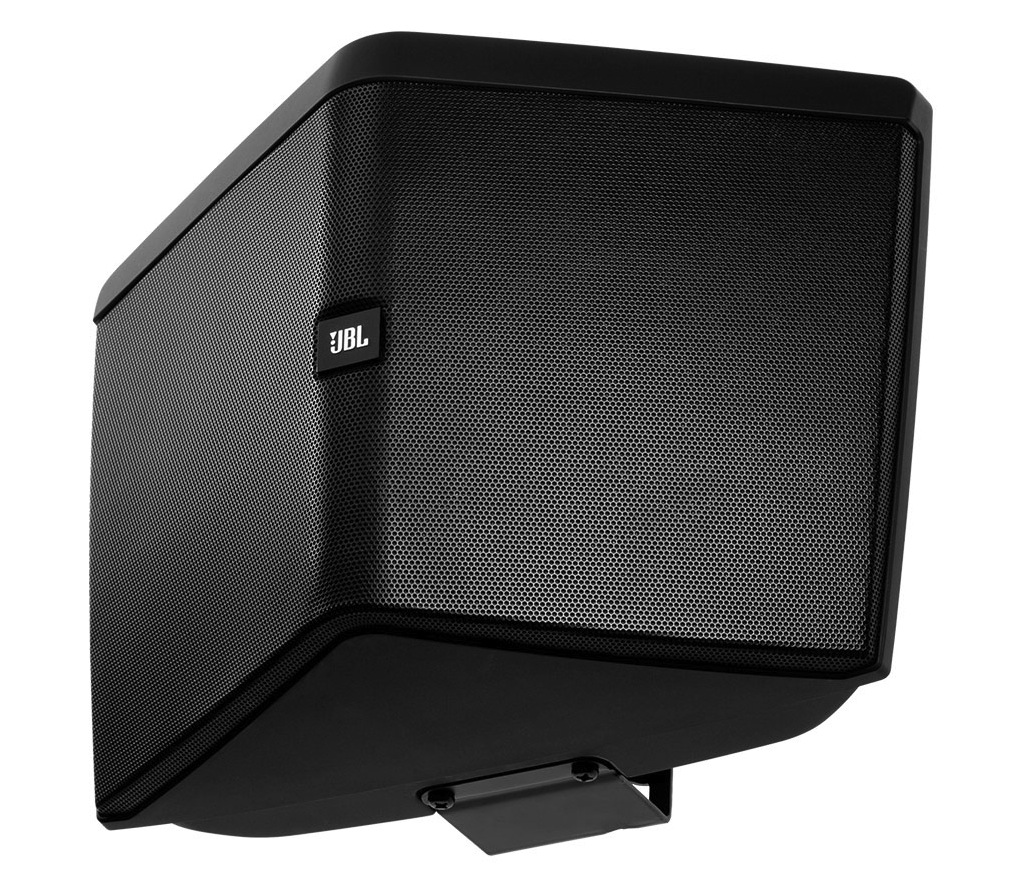

Con unas medidas aproximadas de 14×10 pulgadas de alto y sólo 7 ¼ pulgadas de profundidad, el JBL Control HST se suministra con un robusto herraje en forma de U, resistente a la intemperie, así como con cuatro puntos de montaje M6. Esta caja acústica debe instalarse utilizando este herraje con el fin de asegurar el espaciado adecuado desde la pared, así como un funcionamiento acústico correcto, y no se debe montar en esquinas ni sobre soportes verticales.

El alojamiento de ABS reforzado con fibra de vidrio, la rejilla de aluminio pintada y los transductores resistentes a la intemperie aseguran un funcionamiento fiable, incluso bajo condiciones medioambientales agresivas.
