Vioso provides immersive projection to create life-size plan maps

The architecture studio Plan Live uses advanced projection technology Vioso to offer your clients a full-scale vision of the home of their dreams.

Provide your customers with a one-of-a-kind experience, how to 'enter' the life-size reproduction of your future home, even before construction begins, is what the restaurateur and planner offers Plan Live with the technology of Vioso.

Specifically, Plan Live offers the concept Floor plan 1: 1 (Plano 1: 1), an actual architectural mapping of a proposed development. Control of eight projectors Epson is a Vioso media server, along with its renowned deformation software, calibration and mixing.

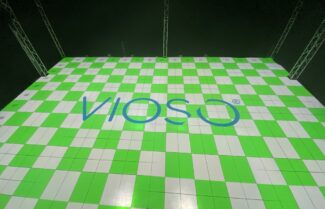

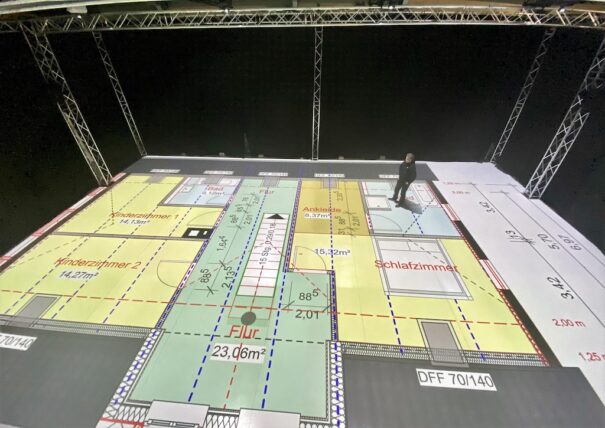

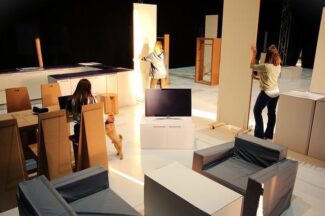

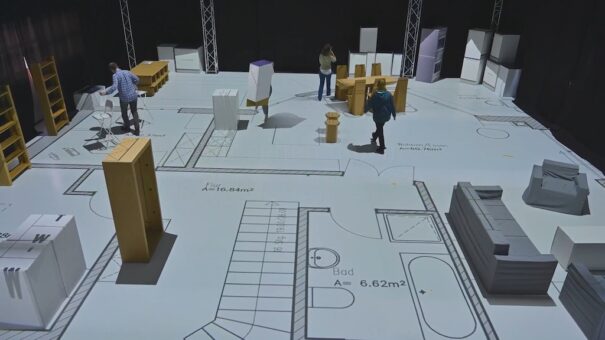

The floor plan is projected, in real size, in a dedicated 17x13.5 meter space at the company's offices in Ahrensburg, in the German city of Hamburg. The movable walls and imitation furniture provided by Plan Live complete this innovative staging.

How do you explain Etienne Servant, AV project manager at Vioso, “Plan Live contacted us with a clear concept in mind and asked us if we could bring a project of this type to life., creating all the interactive features they wanted. We organized a demo in our Düsseldorf office and they were quickly convinced that we were the right company to help them achieve their vision.”.

Plan Live wanted a simple solution to show their clients the plans of the house they had designed, that had the ability to upload new content, change projected plans in real time and control the entire system with a simple touch on a tablet.

To power the system, Servant and his team specified a media server Anystation Media Octo, with wide angle calibration kit, and the system Vioso Room, which allows Plan Live to easily combine projectors, con Vertex managing all content playback.

“Our software is the heart of the system,” says Servant.: manage content playback; performs control of the audio show, lights and projectors, and offers the client a graphical interface to work with the system”.

For the director of Vioso, The most challenging aspect of the project was related to the requirement to reproduce floor plans exactly as in real life. “Since the idea is to project plans on the floor to scale 1:1, we had to provide extreme precision for mixing and warping the content: “one meter on the plane should be exactly one meter on the floor.”.

This was possible thanks to software Core by Vioso, whose latest version includes a system of 3D calibration advanced and easy to use, with perfect pixel distribution. Using Core, The team at this company referred to “measurements and markers on the ground that allowed us to ensure a perfect scale of 1:1”, Servant points out..

After calibration with Vioso Core, The team created a presentation program in Vertex and the touch interface for the tablet, in addition to providing Plan Live with training on how to make the most of the new system.

“We love big images and great projection, "It is always fun to walk on a large projection surface," Servant emphasizes.. Going over a house plan and playing with fake furniture to create the feeling of actually being in the house is amazing. The experience is really impressive”.
