JBL Professional PD500: loudspeakers for large sound projects

Successor of the PD series, this line, composed of five models, maintains the power and coverage of its predecessor and is ideal for use in sports facilities and large auditoriums.

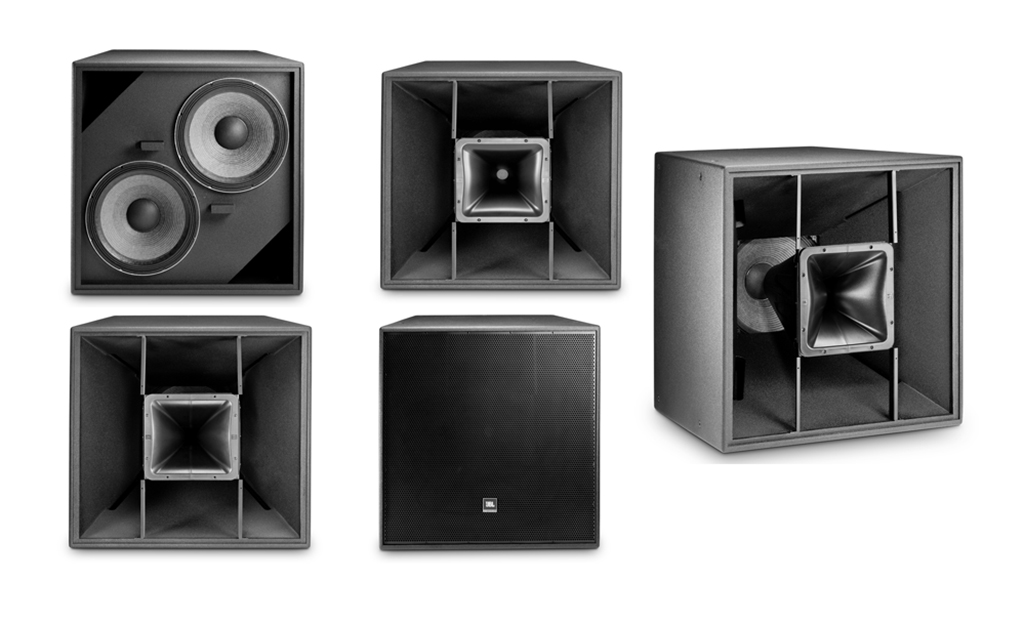

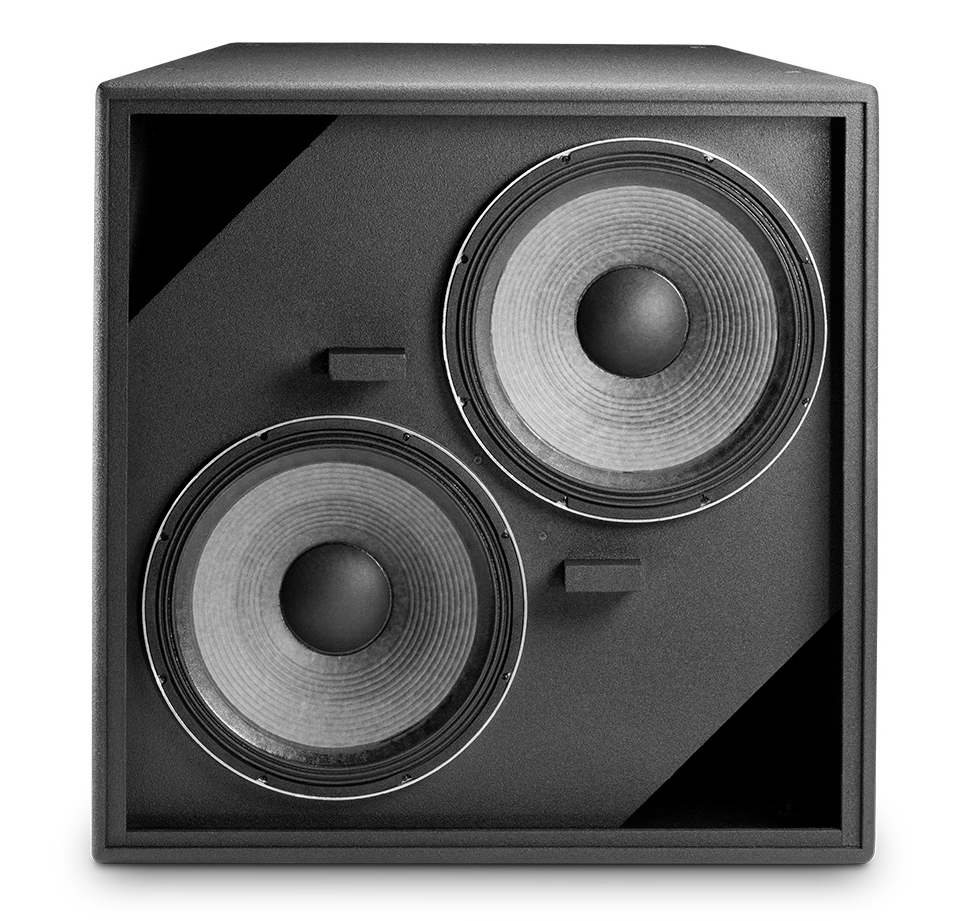

The PD500 series of speakers from JBL Professional consists of 4 systems 2 tracks with woofer 15 inches and compression motor with different horns (of 40 x 40, 60 x 40, 60 x 60 y 90 x 50 degrees) and a subwoofer, with double speaker 15 inches.

It is an extension of the PD series and consists of five models that maintain the power and coverage of the predecessor series. Its applications are very diverse and include sports facilities, auditoriums or spaces for worship. All models are available in black, white and with WRS and WRX finishes, weather protection.

PD500 ‘all range’ systems use the same high frequency transducers as the PD600 series, becoming the ideal option to be used together with these in large systems in which, to achieve uniform sound and coverage throughout the audience area, multiple speakers are required.

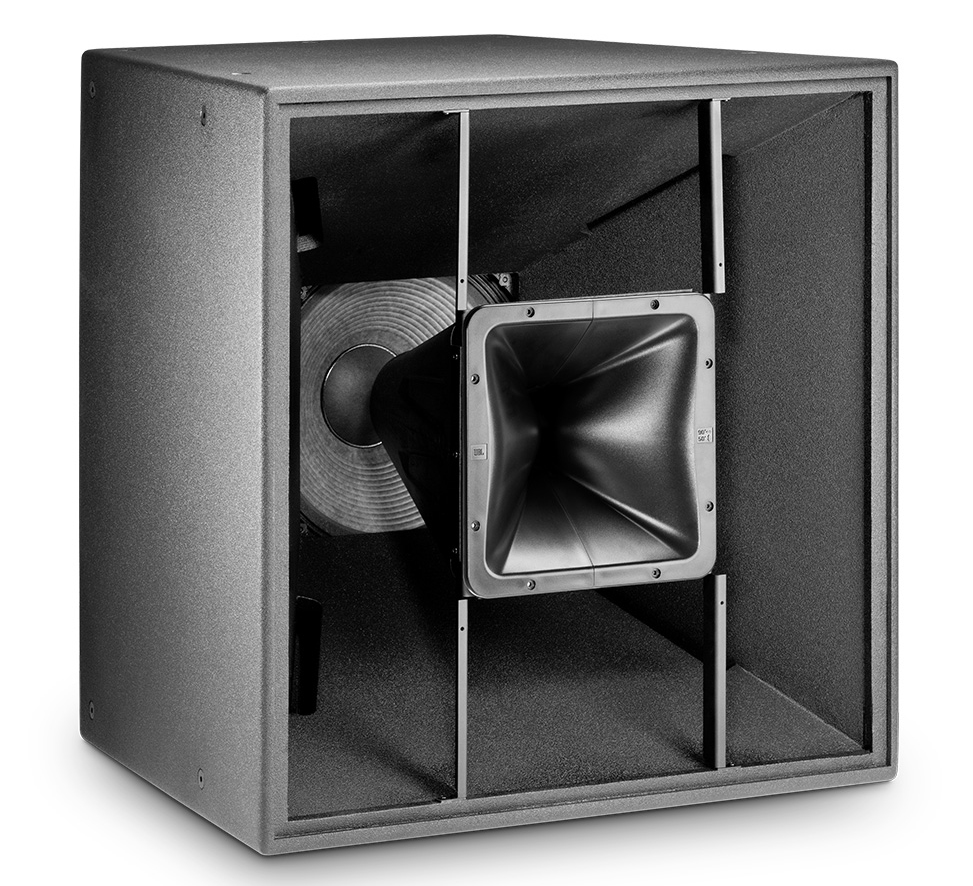

The PD500 series uses JBL Progressive Transition waveguides (PT), coupled to 2432H compression motors 38 mm, of 75 mm and the 2031H low frequency transducer 380 mm that, to be able to offer a continuous high sound pressure level, It has high sensitivity and low power consumption. Besides, Equipped with a horn for additional sensitivity and improved pattern control.

The waveguides of 60 x 40 and of 90 x 50 its rotatable, allowing all models to be used in both vertical and horizontal orientations.

These JBL Professional equipment, whose brand distributes Earpro, can operate in bi-amplified or passive mode. In both cases, digital signal processing is required to achieve specified performance.

Each enclosure is equipped with 20 M10 suspension points, allowing a wide variety of installation possibilities.
