LianTronics surprises with its dynamic curved Led screen with 3D 'Star Trek' effect

No need for glasses, the company has transformed its gigantic Led screen, installed on the facade of the Taikoo Li shopping complex in Chengdu, thanks to a 3D visualization effect of a spaceship.

On the occasion of the recent celebration of China's National Day, the manufacturer of Led display systems LianTronics has carried out a dynamic and three-dimensional audiovisual action, no need for glasses, on its large outdoor Led screen of the Taikoo Li commercial space, in the city center of Chengdu.

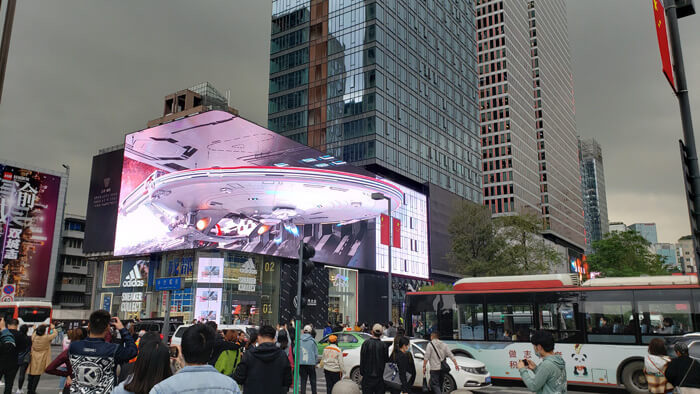

For this, has been integrated into this gigantic LED wall, in curved format, from LianTronics a stunning spaceship visualization effect, reminiscent of 'Star Trek', in 3D without glasses that has surprised passersby in this central shopping street in Chengdu and on Chinese social networks.

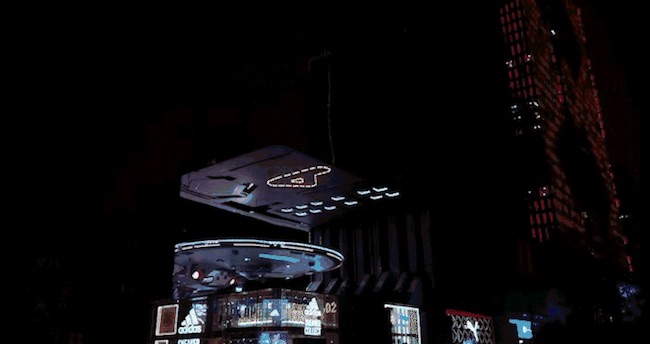

The depth effect simulates the departure of a three-dimensional spaceship that 'detaches' from the large LED screen and rotates around its curved format (in letter form L), that wraps around the façade of the Yingjia building and provides from here an ideal viewing angle to enjoy the visual spectacle without the need for 3D glasses.

With a total area of 912,92 m2, This gigantic screen is configured with FS8 Led panels from the manufacturer, with a size of 960×960 mm, built of iron and aluminum; 8mm pixel pitch and brightness 6.000 nits, which have been arranged in zig-zag with patented masks to effectively diffuse the reflection of sunlight and enrich the colors.

These Led modules are completely waterproof and anti-UV to avoid deformation and stabilize visual diffusion outdoors with maximum durability. At the same time, high contrast ratio, The refresh rate and ultra-uniform color display help ensure images are presented with the highest quality.

In total, This gigantic outdoor Led display wall is made up of a screen of 63,68 m. long (one of 47,2 m. North facing, to which is added a curved corner of 2 m. and a screen 14,432 m. east facing) y 14,336 m. tall.

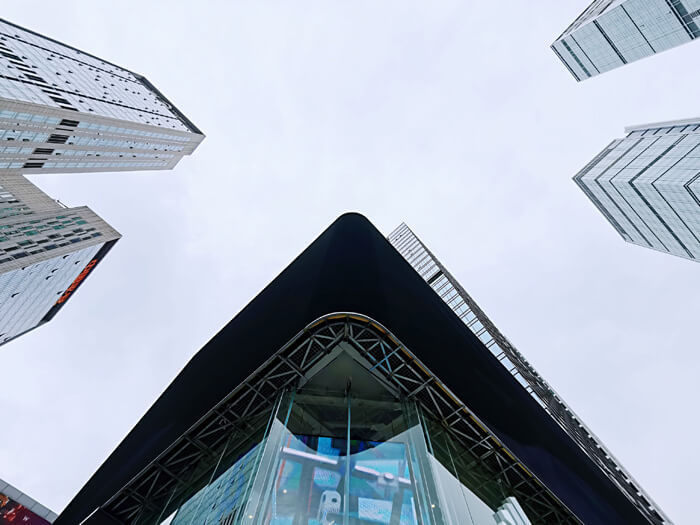

Mr. Wang, director of this LianTronics project, this is how he explains it: “we have mounted the wall twice to achieve this extraordinary 3D effect without glasses. We dismantle the screen, we readjust the structure and the Led panels, and we install it again to reduce the curvature of the corner, which helps generate a more stereoscopic sense of the finished wall. “Customized and redesigned modules for the curved corner can be seamlessly spliced ​​to make the broadcast transition seamless.”.
